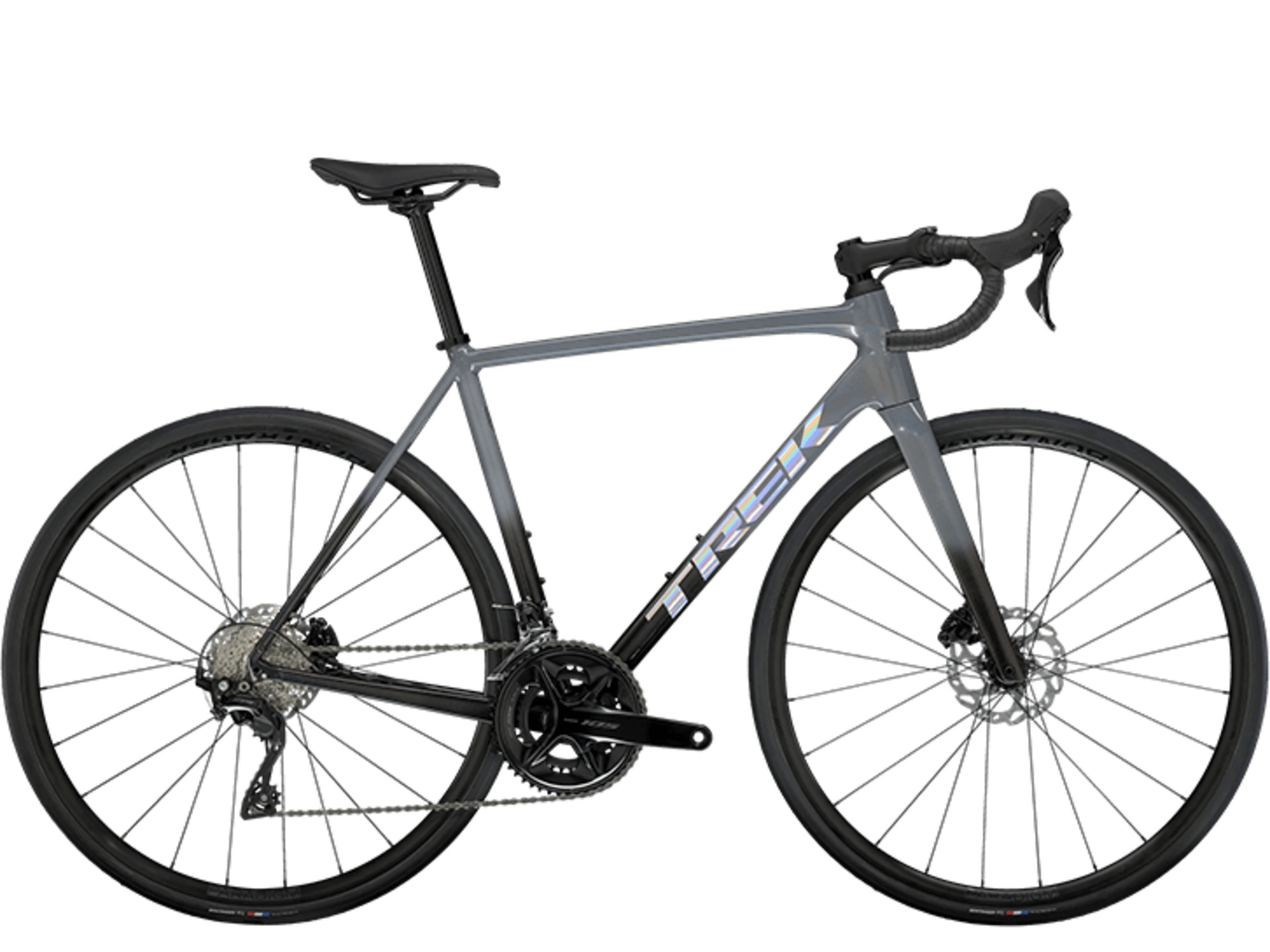

TREK 2024 EMONDA ALR 5

C$2,799.99
1 In stock
Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point.
Add to cart

Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

It's right for you if...

You want all the advantages of a bike built to for featherweight performance in a wallet-friendly alloy frame that has the sleek looks and handling you'd expect only from a carbon frame, and the confident stopping power that disc brakes provide.

The tech you get

An ultralight 300 Series Alpha Aluminum frame with Kammtail shaped tubes for increased aerodynamics, Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2x12 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes, and tubeless ready wheels.

The final word

An advanced alloy frame that looks and performs like carbon and a reliable Shimano 105 drivetrain give this race-ready ride an incredible amount of versatility.


Watch video

Why you'll love it

  1. This ultralight alloy frame is designed for racing and packs in super tidy cable routing
  2. It climbs fast, corners on rails, and descends with confidence
  3. Kammtail tube shapes help make Émonda ALR even faster than before
  4. It shares the geometry of our highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
  5. Internal cable routing extends the life of your cables and adds to the bike's sleek look

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Fork Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Weight
Weight 56 - 9.17 kg / 20.22 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Drivetrain
Shifter Shimano 105 R7120, 12 speed
Front derailleur Shimano 105 R7100, braze-on, down swing
Rear derailleur Shimano 105 R7100, 36T max cog
*Crank Size: 47
Shimano 105 R7100, 50/34, 165mm length
Size: 50, 52
Shimano 105 R7100, 50/34, 170mm length
Size: 54, 56, 58
Shimano 105 R7100, 50/34, 172.5mm length
Size: 60, 62
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 7101, 11-34, 12 speed
Chain Shimano SLX M7100, 12 speed
Max chainring size 1x: 48T, 2x: 53/39 (Shimano), 48/35 (SRAM)
Wheels
Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size 28mm
Components
*Saddle Size: 47, 50, 52
Verse Short Comp, steel rails, 155mm width
Size: 54, 56, 58, 60, 62
Verse Short Comp, steel rails, 145mm width
*Seatpost Size: 47
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 50, 52, 54, 56, 58, 60, 62
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar Size: 47, 50
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: 54, 56, 58
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Size: 60, 62
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 47
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake Shimano 105 hydraulic disc, flat mount
Brake rotor Shimano RT70, centerlock, 160mm
Rotor size Max brake rotor sizes: 160mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
