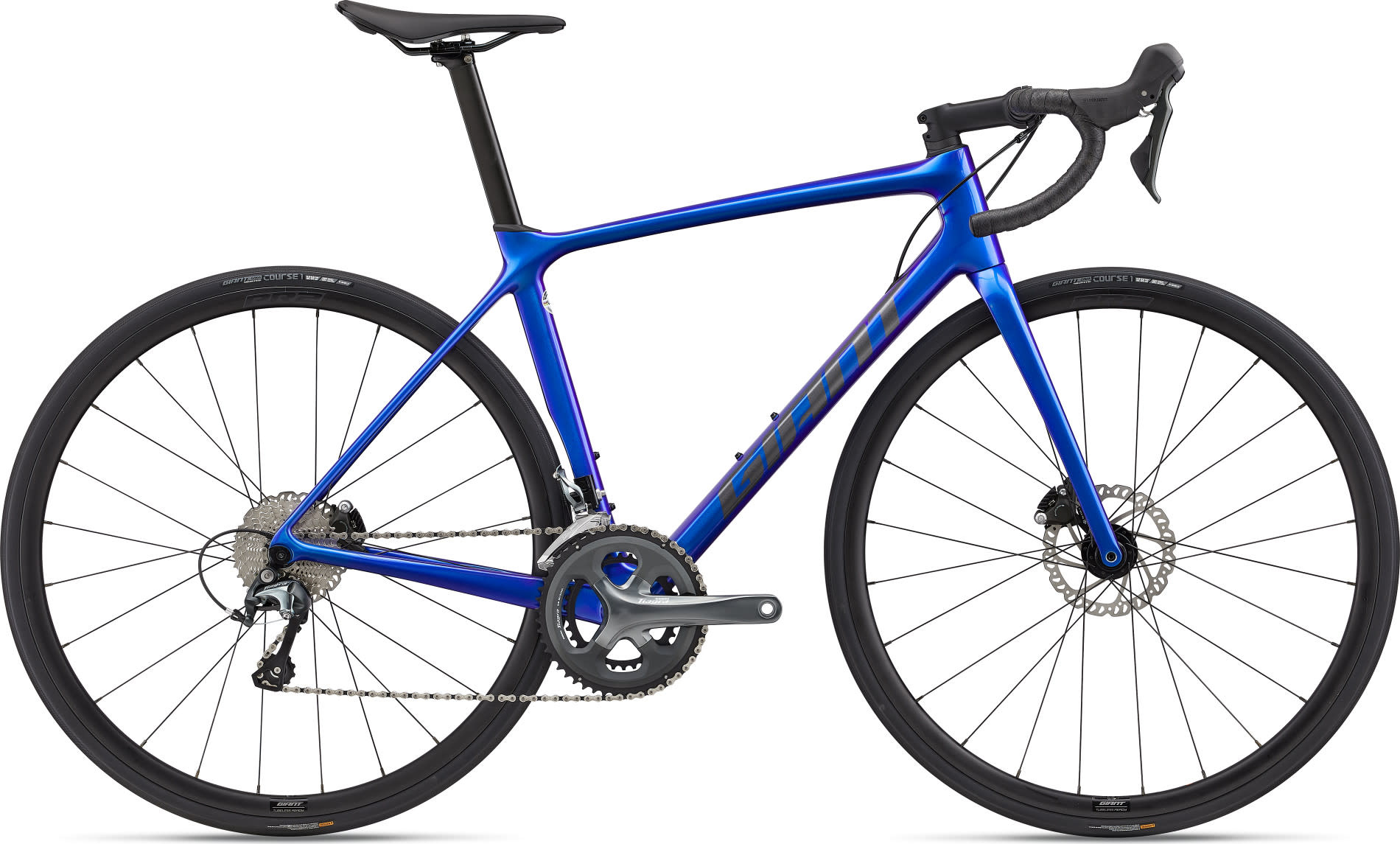

GIANT 2022 TCR Advanced Disc 3

Class-leading efficiency

With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

HIGHLIGHTS

Reengineered with updated aerodynamic tube shaping in the headtube, downtube and fork, plus added clearance for larger diameter tires, this all-rounder delivers outstanding on-the-road efficiency. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. And with its integrated disc-brake technology, it’s an all-weather, all-conditions race machine.

• Sizes : XS, S, M, M/L, L, XL

• Colours : Sapphire
• Frame : Advanced-Grade Composite, disc
• Fork : Advanced-Grade Composite, full-composite OverDrive steerer, disc
• Shock N/A
• Handlebar : Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips
  Stratus Lite 2.0
• Stem
  Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost
  Giant Variant, composite, -5/+15mm offset
• Saddle
  Giant Approach
• Pedals
  N/A
• Shifters
  Shimano Tiagra
• Front Derailleur
  Shimano Tiagra
• Rear Derailleur
  Shimano Tiagra
• Brakes
  Shimano Tiagra hydraulic, Giant MPH rotors [F]160mm, [R]140mm
• Brake Levers
  Shimano Tiagra hydraulic
• Cassette
  Shimano Tiagra, 11-speed, 11x32
• Chain
  KMC X10-1
• Crankset
  Shimano Tiagra, 34/50 **some bikes may be substituted: FSA Omega Adventure, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  Shimano, press fit **some bikes may be substituted: FSA BB-AL86, press fit
• Rims
  Giant P-R2 Disc wheelset
• Hubs
  Giant P-R2 Disc wheelset, 12mm thru-axle
• Spokes
  Giant P-R2 Disc wheelset
• Tires
  Giant Course 1, tubeless, 700x25c (28mm), folding
• Extras
  tubeless prepared, 32mm max tire size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
